Description
Opis
Komputer wbudowany oparty na procesorze Intel® Elkhart Lake J6412.
Wysoka jakość i szeroka funkcjonalność w atrakcyjnej cenie!
| Specifications | @ |
| Model | – HB368F21-6412-W (non-WiFi) – HB368F21I-6412-W (WiFi) |
||
| CPU/Chipset | – Intel® Elkhart Lake SoC Processor ( J6412 , TDP 10W) | ||
| BIOS | – AMI Flash ROM | ||
| Memory | – 1* DDR4 3200MHz SO-DIMM up to 32GB | ||
| Network | – 2* Realtek RTL8119I GbE | ||
| Graphics | – Intel® HD Graphics, shared memory – 3* DP (Max Resolution: 4096×2160@60Hz) – Support Triple Displays |
||
| Storage | – 1* M.2 M-key (2242/2280, PCIe Gen.3 x2/SATA interface) support NVME – 64GB eMMC onboard (option) |
||
| Expansion | – 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface) – 1* M.2 B-key (3042,USB3.0 interface) |
||

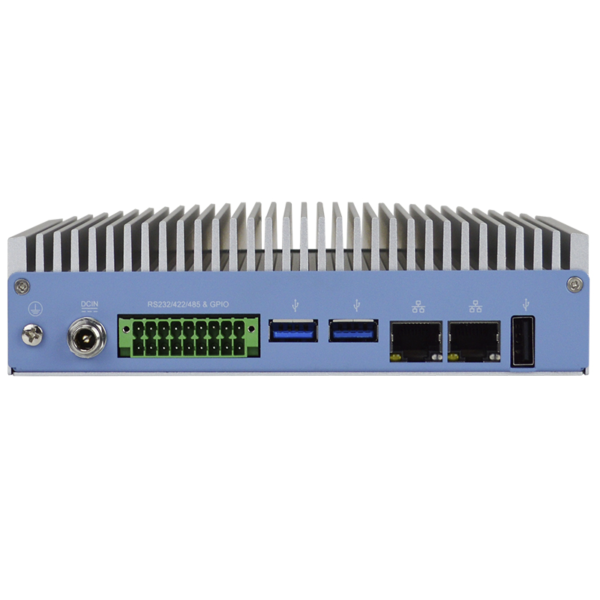

| Rear Panel I/O | – 2* RJ45 – 2* USB3.1(Gen.2) – 1* USB2.0 – 1* 8 bit GPIO (Phoenix Connector 2*9 PIN) – 2* RS232/422/485 (Phoenix Connector 2*9 PIN) – 1* DC in (Lockable) |
||

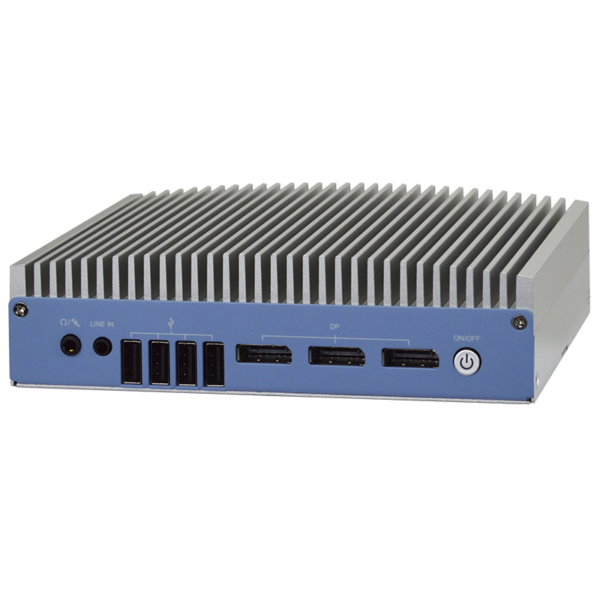

| Front Panel I/O | – 1* Power button + Power LED – 4* USB2.0 – 1* Audio(Line out+MIC) – 1* Line in – 3* DP |
||
| Internal Connector | – SIM Card Holder | ||
| Power Source | – Adapter : AC 90~240V input / DC12V_60W output – MB : DC12~36V input |
||
| Compliance | – CE, FCC, LVD, RoHS, ErP Ready | ||
| Dimensions | – System: 160.2 (W) x 106 (D) x 43.5(H) mm – Net Weight: 1.01KG Gross Weight: 1.52KG |
||
| Temperature | – Operating Temperature: -20 ~ 70° C (Under the condition of using M.2 interface SSD) – Storage Temperature: -40 ~ 85° C – Humidity: 10% ~ 95% RH @40°C (non-condensing) |
||
| OS Support | – Windows 11, Linux | ||
| Warranty | – 2 Year limited warranty | ||
* Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
| Standard Accessories | @ |
| Part Number | Description |
| HB368F21-6412-W Series | |
| HCSFBMWM01B-F | WALL MOUNT KITS |
| HCS3XXDINRAILPS-F | DIN RAIL KITS |
| L01AS052-F | Adapter DC12V_60W |
| Change according to shipping area | Power cord |
| LCSCHBJC3XX-F | Screw Pack |
| J05-ANT-GX57245-F | Antenna 2G4/5G 2.8dBi (WiFi only) |
Zainteresowany tym produktem?
Serdecznie zapraszamy do kontaktu!
