Description

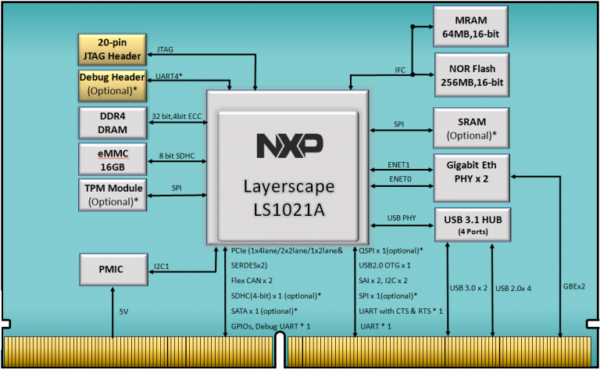

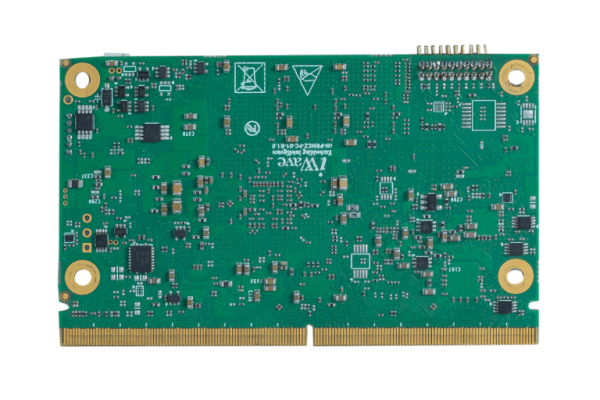

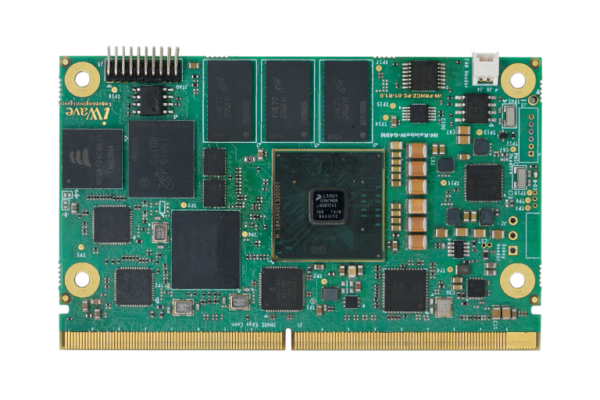

QorIQ Layerscape LS1021A SMARC SOM
| CPU | Dual core Arm Cortex-A7 32-bit processor |
|---|---|
| Power | DA9062 PMIC |
| Memory | 2GB DDR4 with ECC (16-bit + 4-bit)
16GB eMMC expandable up to 128GB 256MB NOR Flash 32Mbit MRAM 512 Kbit SRAM (Optional) |
| Other On-SOM Features | Gigabit Ethernet PHY x 2
2 x USB 3.0 Host 4 x USB 2.0 1 x USB 2.0 OTG (optional) TPM 2.0 Module (optional) Debug UART Header JTAG Header |
SMARC PCB Edge Interfaces:
|
General Features:
| Power Input | 5V input through SMARC Edge Connector |
|---|---|
| Form Factor | 82mm x 50mm |
| Operating Temperature | -40°C to +85°C (Industrial) |
| BSP Support | Linux 6.1.1 |
| Environment Specification | RoHS & REACH Compliant |
DEVELOPMENT KIT
- Gigabit Ethernet Jack x 2
- PCIe x 4 / PCIe x 2 & M.2 PCIe slot / PCIe x 2 & M.2 SATA slot
- USB 3.0 Type-A x 2
- USB 2.0 Host Type-A x 2
- Standard SD x1
- Audio In & Out Jack through I2S Codec x 2
- Full Function UART – 1 Port
- RTC with a backup battery
- CAN Header x 2
- RS232 Header x 1
- USB 2.0 OTG Type-micro AB x1(Optional)
- Debug UART through Micro USB Port(Optional)
