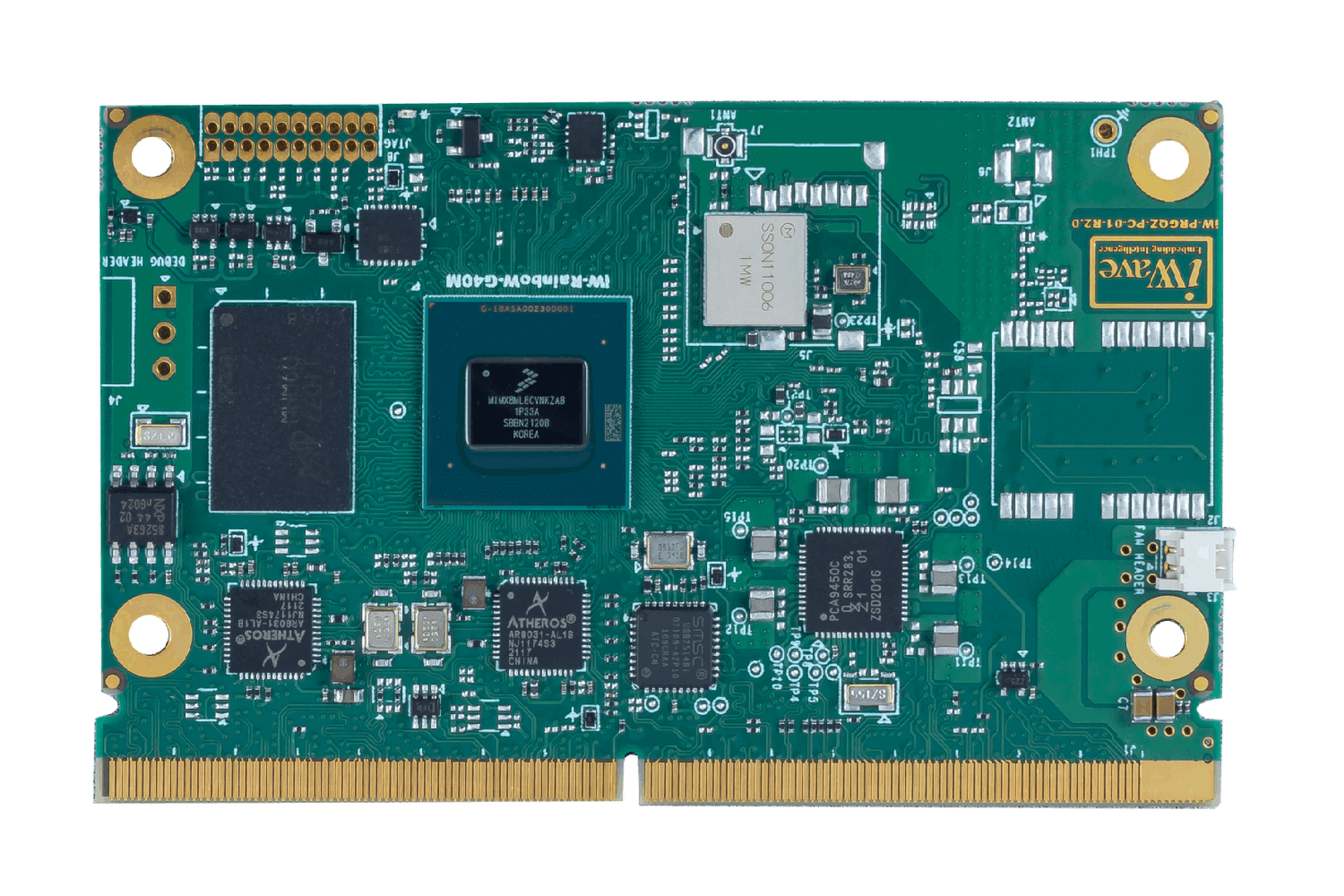

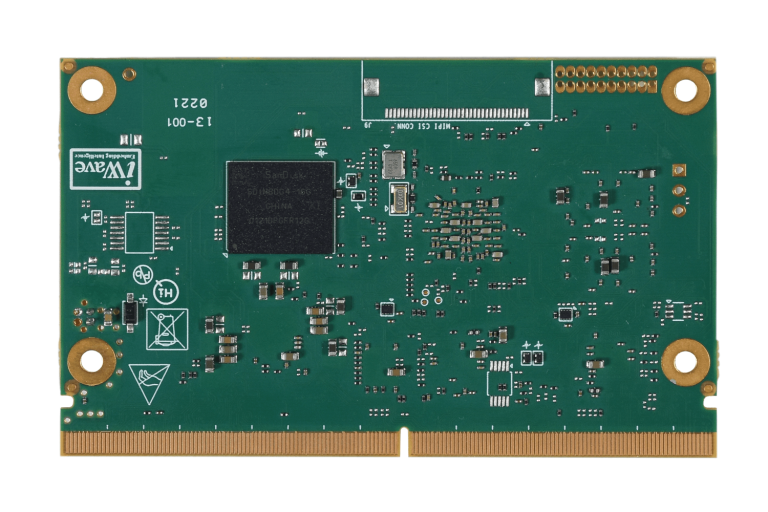

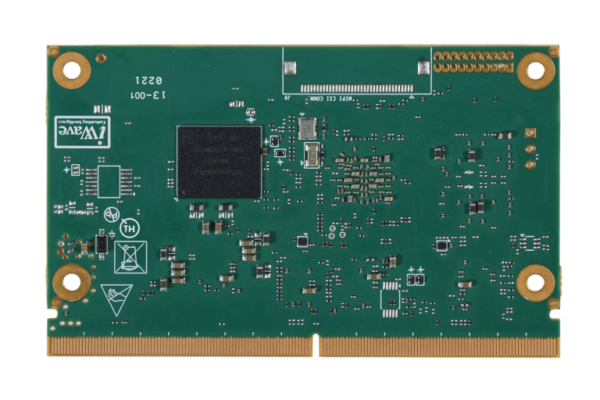

iWave iW-RainboW-G40M i.MX 8M Plus SMARC SOM

iWave iW-RainboW-G40M i.MX 8M Plus SMARC SOM

iWave iW-RainboW-G40M i.MX 8M Plus SMARC SOM

iWave iW-RainboW-G40M i.MX 8M Plus SMARC SOM

iWave iW-RainboW-G40M i.MX 8M Plus SMARC SOM

i.MX 8M Plus Q/QL/D SoC with 64-bit ARMv8-A Architecture
NPU with up to 2.3 TOP/s Neural Network performance
IEEE 802.11a/b/g/n/ac Wi-Fi & Bluetooth 5.0
Dual 1000/100/10 Mbps Ethernet (TSN support on one Port)
GNSS receiver Module –GPS/GLONASS/Galileo/BeiDou (optional)
Excels in ML vision, edge intelligence & advanced multimedia applications.
Dual or Quad-core ARM Cortex-A53 up to 1.8GHz & M7 at 800MHz
10+ years of Product Longevity Program
SMARC v2.1.1 Compatible SOM

SKU: iWave iW-RainboW-G40M i.MX 8M Plus SMARC SOM

Opis

Description

Karta katalogowa Manual

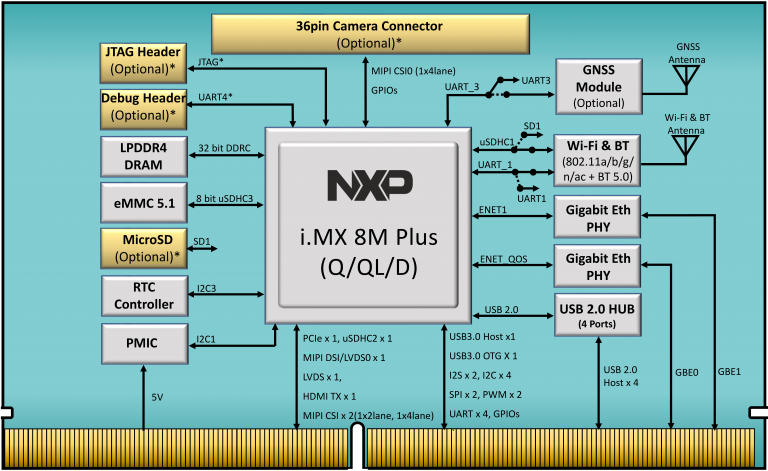

On Module Feature:

CPU	i.MX 8M Plus Quad : 4 x Cortex-A53, 1 x Cortex-M7, GPU, VPU, NPU ,ISP & HiFi4 Audio DSP i.MX 8M Plus Quad Lite : 4 x Cortex-A53, 1 x Cortex-M7 & GPU i.MX 8M Plus Dual : 2 x Cortex-A53, 1 x Cortex-M7, GPU, VPU, NPU ,ISP & HiFi4 Audio DSP
Memory & Storage	2GB LPDDR4 expandable up to 8GB 16GB eMMC Flash expandable up to 128GB Micro SD slot (Optional)
Other	IEEE 802.11a/b/g/n/ac Wi-Fi & Bluetooth 5.0 Module GNSS receiver Module –GPS/GLONASS/Galileo/BeiDou(Optional)

Edge Connector Features:

Gigabit Ethernet x 2 (TSN support on one port)
PCIe 3.0 x 1
USB 2.0 Host x 4
USB 3.0 Host x 1 (Not including 2.0 lines)
USB 3.0 OTG x 1
SD 3.01 x 1
HDMI 2.0a TX x 1
4 lane MIPI DSI x 1/LVDS0
LVDS1
2 lane MIPI CSI0 x 1
4 lane MIPI CSI1 x 1
I2C x 4(Power Management I2C is optional)
CAN FD x 2
SPI x 2
I2S x 2
UART x 4(One is optional)
PWMx 2
SMARC GPIOs

Camera Connector Features (Optional):

4 lane MIPI CSI0 x 1 (Optional)
I2C x 1 (Optional)
GPIOs (Optional)

OS Support

Linux 5.4.70 (or higher)
Android 11 (or higher)
Ubuntu 22.04
QNX 7.1

General Features:

Power Input	5V, 2.5A through SMARC EDGE Connector
Form Factor	82mm x 50mm
Operating Temperature	-40°C to +85°C
Environment Specification	REACH & RoHS3 Compliant

DEVELOPMENT KIT

Gigabit Ethernet Jack x 2
PCIe X1 & M.2 KEY B Pcie
USB 3.0 Type-A & Type-C OTG
USB 2.0 Host Type-A x 2
USB 2.0 OTG Type-micro AB x 1(Optional)
Standard SD x1, HDMI TX x1
MIPI DSI & 20pin LVDS Connector
MIPI CSI Camera Connector
Audio In & Out Jack through I2S Codec x2
Full Function UART – 1 Port
RTC with a backup battery
CAN Header x 2
Debug UART through Micro USB Port
