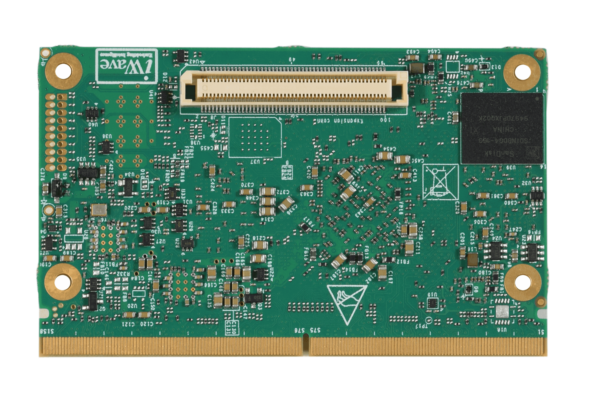

iWave iW-RainboW-G27M i.MX 8QuadMax/QuadPlus SMARC SOM

iWave iW-RainboW-G27M i.MX 8QuadMax/QuadPlus SMARC SOM

iWave iW-RainboW-G27M i.MX 8QuadMax/QuadPlus SMARC SOM

  • i.MX 8 QM/QP SoC with Arm Cortex-A72 & Arm Cortex-A53
  • Dual Complex Core System:
    • Complex 1: 4 x Cortex-A53 @ 1.2 GHZ
    • Complex 2: 2 x Cortex-A72 @ 1.6 GHZ
  • 2 x Cortex-M4F @ 264 MHZ for advanced system control
  • ARM v8 64-bit instruction capability; Fully 32-bit capable
  • Integrated Full Chip Hardware Virtualization capabilities
  • 16-Shader 3D (Vec4)
  • 4K H.265 decode & 1080p H.264 encode/decode capable VPU
  • Enhanced Vision Capabilities (via GP)
  • IEEE 802.11 a/b/g/n/ac/ax* Wi-Fi & BT 5.0 Module
  • Dual 1000/100/10 Mbps Ethernet
  • LPDDR4 – Up to 8GB
  • SMARC v2.1.1 compatible
  • Security Suite (Optional)

SKU: iWave iW-RainboW-G27M i.MX 8QuadMax/QuadPlus SMARC SOM

Description

Karta katalogowa Manual

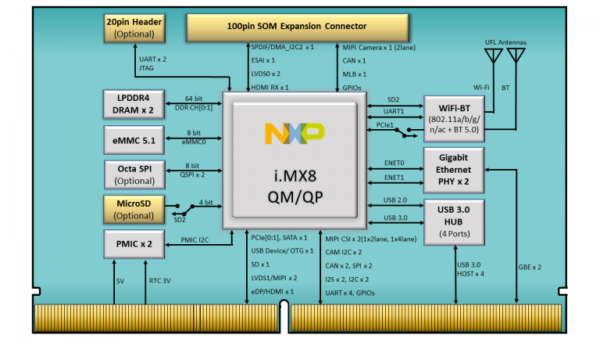

On Module Features:

CPU i.MX 8 Quad Max: 2 x Cortex-A72, 4 x Cortex-A53, 1 x Cortex-M4 & 1 x Cortex-M4F
i.MX 8 Quad Plus: 1 x Cortex-A72, 4 x Cortex-A53, 1 x Cortex-M4 & 1 x Cortex-M4F
Memory & Storage LPDDR4 expandable up to 8GB
16GB eMMC Flash expandable up to 256GB
Micro SD slot (Optional)
QSPI Flash (Optional)
Communication Gigabit Ethernet PHY Transceiver x 2
USB 3.0 High Speed 4-Port Hub
IEEE 802.11 a/b/g/n/ac/ax* Wi-Fi & BT 5.0

Edge Connector Features:

  • Gigabit Ethernet x 2 Ports
  • USB 3.0 Host x 2 Ports
  • PCIe x 2 Ports
  • SATA x 1 Port
  • USB 2.0 OTG x 1 Port
  • USB 2.0 Host x 2 Ports
  • SD (4bit) x 1 Port
  • LVDS1/MIPI_DSI x 2 Channels
  • HDMI/DP Transmitter x 1 Port
  • SAI/I2S (Audio Interface) x 2 Ports
  • Debug UART
  • Data UART (with CTS & RTS) x 1 Port
  • Data UART (without CTS & RTS) x 1 Port
  • CAN x 2 Ports
  • SPI x 2 Ports
  • I2C x 1 Port
  • GPIO, Control & Status Signals
  • MIPI CSI x 2 Channel (1 x 2Lane, 1 x 4Lane)

Expansion Connector Features (Optional):

  • LVDS0 x 2 Channels
  • MLB x 1 Channel
  • HDMI Receiver X 1 Port (Optional)
  • CAN x 1 port
  • I2C/ SPDIF x 1 port
  • ESAI x 1 port
  • GPIOs
  • 2 lane of MIPI CSI0 x1 (No clock Lane)
  • TAMPER x2

OS Support:

  • Linux 5.15.52
  • Android Pie 11.0.0



  • QNX 7.1.0 (or higher)
  • Ubuntu 22.04

General Features:

Power Input 5V, 4A through SMARC Edge Connector
Form Factor 82mm x 50mm, SMARC v2.1.1 compatible
Operating Temperature -40°C to +85°C
Environment Specification REACH & RoHS3 Compliant
Note: Optional features are not supported in default configuration.

DEVELOPMENT KIT

  • Gigabit Ethernet Jack x2
  • PCIe X1 & M.2 KEY B PCIe
  • M.2 KEY B SATA
  • USB 3.0 Type-A & Type-C
  • USB 2.0 Host Type-A x2
  • USB 2.0 OTG Type-micro AB x1
  • Standard SD x1
  • HDMI2.0/DP1.3 x1
  • MIPI DSI Connector
  • 20pin LVDS Connector
  • OV5640 MIPI CSI Camera Connector
  • Audio In/Out Jack through I2S Codec x2
  • MIPI CSI Camera Connector
  • Full Function UART – 1 Port
  • RTC with backup battery
  • CAN Header x2
  • Debug UART through Micro USB Port
