Description
Opis

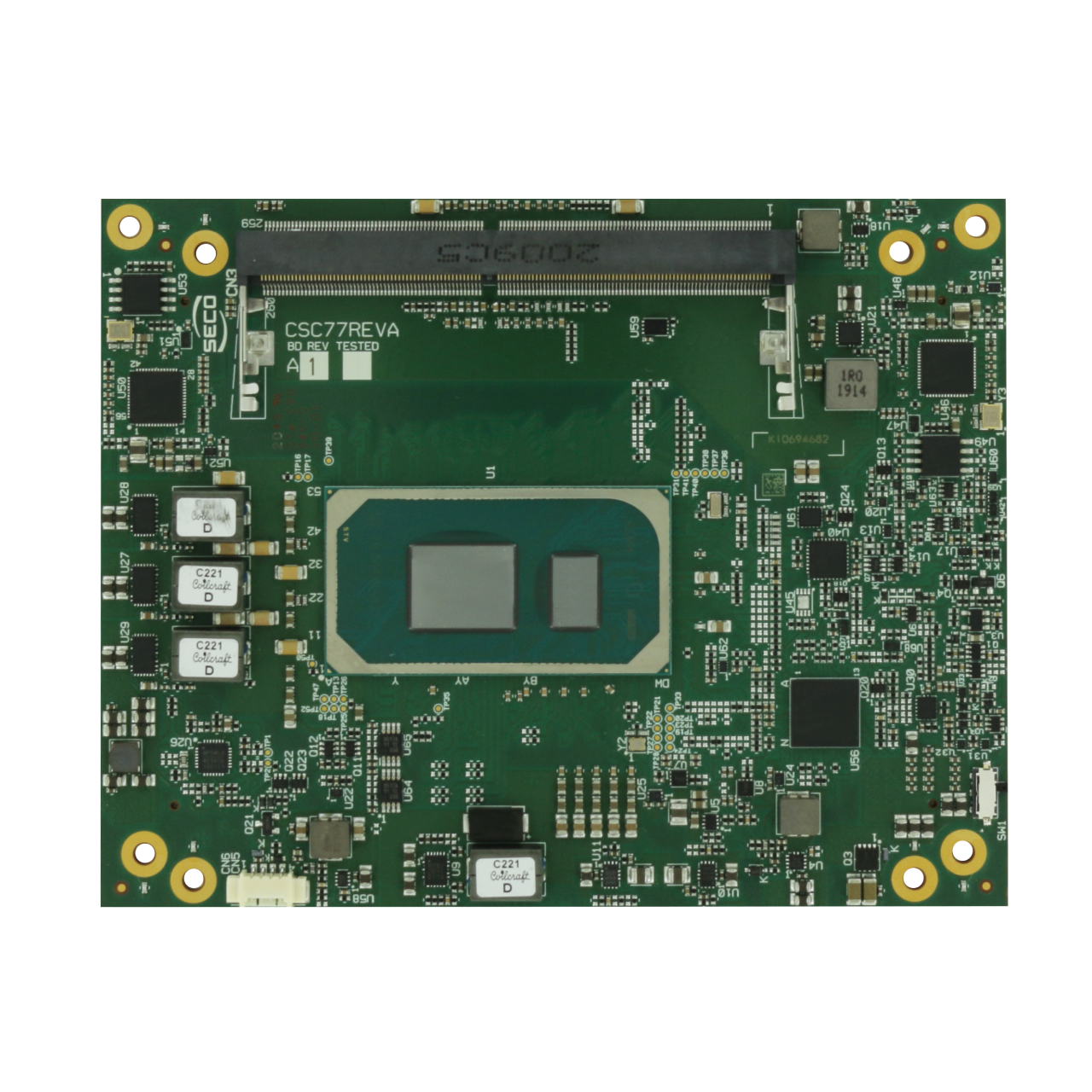

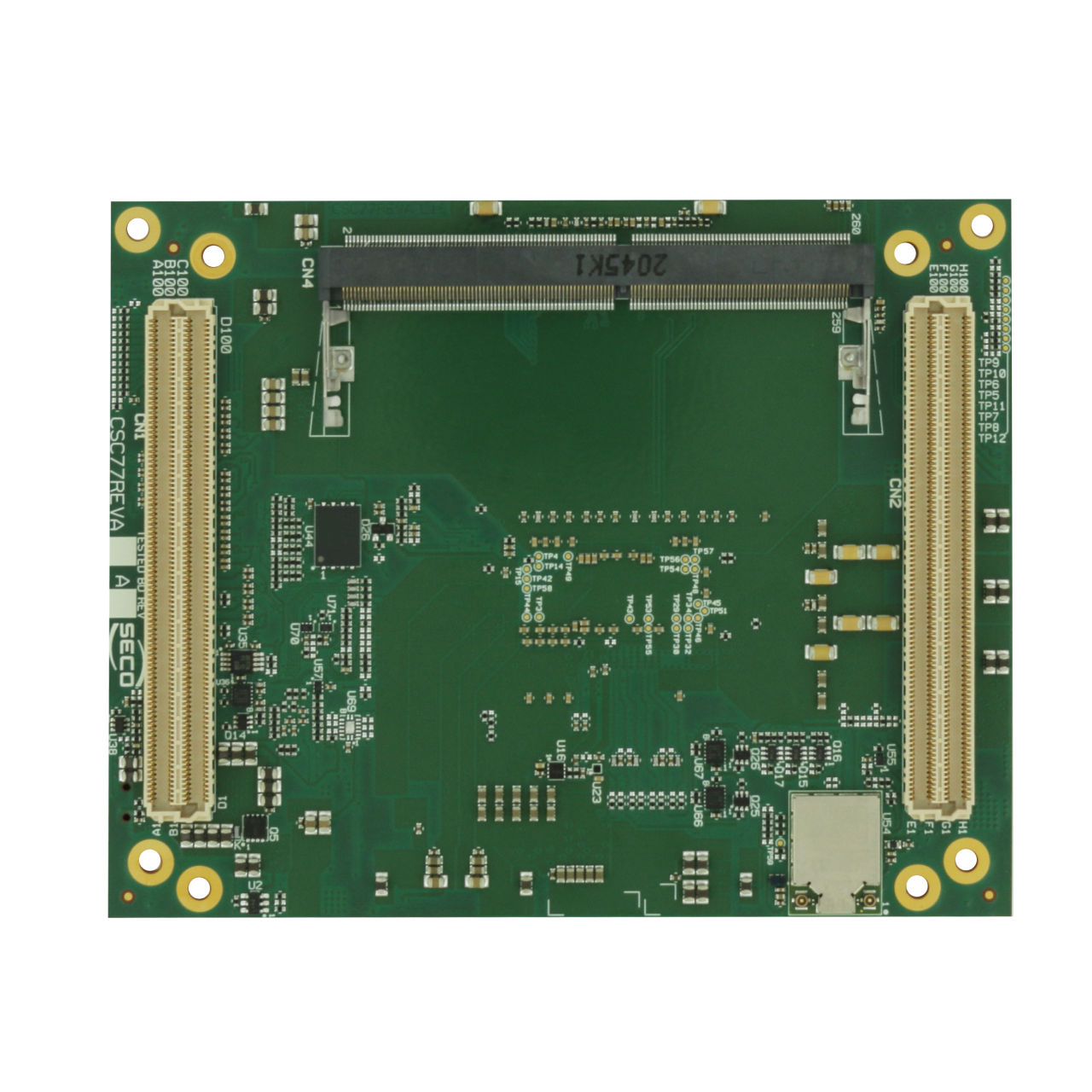

SECO SOM-COM-HPC-A-TGL-UP3 (CARINA / CHPC-C77-CSA) to komputer modułowy standardu COM-HPC® typu Client w rozmiarze A, oparty na procesorach Intel® Core™ i Celeron® 11. generacji (Tiger Lake-UP3).
 Description |
COM-HPC® Client Computer on Module (CoM) Size A with 11th Gen Intel® Core™ and Celeron® (formerly Tiger Lake-UP3) Processors |
|---|---|
 Cpu |
11th Generation Intel® Core™ and Celeron® Processors, also available in industrial temperature range • Intel® Core™ i7-1185G7E, Quad Core @ 2.8GHz (4.4GHz in Turbo Boost) with HT, 12MB Cache, 28/15/12W cTDP • Intel® Core™ i5-1145G7E, Quad Core @ 2.6GHz (4.1GHz in Turbo Boost) with HT, 8MB Cache, 28/15/12W cTDP • Intel® Core™ i3-1115G4E, Dual Core @ 3.0GHz (3.9GHz in Turbo Boost) with HT, 6MB Cache, 28/15/12W cTDP • Intel® Celeron® 6305E, Dual Core @1.8GHz, 4MB Cache, 15W TDP • Intel® Core™ i7-1185GRE, Quad Core @ 2.8GHz (4.4GHz in Turbo Boost) with HT, 12MB Cache, with IBECC and Functional Safety Essential Design package, 28/15/12W cTDP – Industrial (w/ Turbo OFF) • Intel® Core™ i5-1145GRE, Quad Core @ 2.6GHz (4.1GHz in Turbo Boost) with HT, 8MB Cache, with IBECC and Functional Safety Essential Design package, 28/15/12W cTDP – Industrial (w/ Turbo OFF) •Intel® Core i3-1115GRE, Dual Core @ 3.0GHz (3.9GHz in Turbo Boost) with HT, 6MB Cache, 28/15/12W cTDP – Industrial (w/ Turbo OFF) |
| Max Cores |
4 |
| Memory |
2x DDR4-3200 SODIMM Slots with IBECC (In-Band Error Correction Code), up to 64GB supported |
 Graphics |
Integrated Iris Xe Graphics Core Gen12 architecture, with up to 96 Execution Units MPEG2, WMV9, AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP9, AV1 HW decoding, up to 8k @60. AVC/H.264, HEVC/H.265, JPEG, VP9 HW encoding Support up to 4 independent displays. |
 Video Interfaces |
1x eDP 1.4b or MIPI_DSI 1.3 Up to 3x DP++ interface, supporting Display Port 1.4a and HDMI 2.0b Up to 4x Display Port over Type-C (Alternate mode) |
 Video Resolution |
DP, eDP: Up to 5120×3200 @60Hz 24bpp / 7680×4320@60Hz 30bpp with DSC MIPI-DSI: Up to 3200×2000 @60Hz 24 bpp, 5120×3200 @60Hz 24bpp with DSC HDMI 1.4: Up to 4Kx2K 24-30Hz 24bpp HDMI 2.0b: Up to 4Kx2K 48-60Hz 24bpp / 4Kx2K 48-60Hz 12bpc (need dedicated redriver on carrier board) |
 Mass Storage |
2 x S-ATA Gen3 Channels PCI-e x4 port can be used to connect, on the carrier board, M.2 NVMe drives |
 Networking |
Up to 2x NBase-T Ethernet interfaces, supporting 2.5Gb Ethernet connection, managed by as many Intel® i225 2.5GbE Controllers M.2 1216 SD Module supporting WiFi 802.11abgn+ac R2 MIMO 2×2 + MU-MIMO and Bluetooth 5.0 |
 Usb |
Up to 4 x USB 4.0 / USB 3.2 Host ports 4 x USB 2.0 Host port |
| Pci |
1x PCI-e x4 Gen 4 port Up to 8x PCI-e Gen 3 lanes, groupable to support up to 4 root ports (5 root ports without the second 2.5GbE controller) |
 Audio |
SoundWire and I2S Audio Interface |
 Serial Ports |
2 x UARTs |
 Other Interfaces |
2x 4-lane CSI-2 interfaces, optional SPI, SM Bus, 2x I2C, Watchdog timer, Carrier board FAN Control Management signals, ACPI signals, Safety Status signals Deep Sleep / Battery support Optional TPM 2.0 module on-board 12x GPIOs |
 Power Supply |
+8VDC .. +20VDC Main power supply +5V stand-by |
 Operating System |
Windows 10 IoT Enterprise LTSC Linux Kernel LTS Yocto VxWorks 7.0 Android |
 Operating Temperature |
0°C ÷ +60°C (Commercial version) -40°C ÷ +85°C (Industrial version)*Measured at any point of SECO standard heatspreader for this product, during any and all times (including start-up). Actual temperature will widely depend on application, enclosure and/or environment. Upon customer to consider applicationspecific cooling solutions for the final system to keep the heatspreader temperature in the range indicated. |
 Dimensions |
120 x 95 mm (Com HPC Size A Form factor, Client pinout) |
| HC77-1000-1120-C2 | Part Number DescriptionCOM-HPC – CARINA w/Intel® Core™ i5-1145G7E, Quad Core @ 2.6GHz (4.1GHz in Turbo Boost), 8MB Cache, 28/15/12W cTDP, TPM 2.0, 8xPCI-e Gen 3, 1x eDP, 1x DP++, 4x USB 4.0, Comm. Temp. |
|
| HC77-2000-1120-I2 | Part Number DescriptionCOM-HPC – CARINA w/Intel® Core™ i7-1185GRE, Quad Core @ 2.8GHz (4.4GHz in Turbo Boost) 12MB Cache, with IBECC and FuSa, 28/15/12W cTDP, TPM 2.0, 8x PCI-e Gen 3, 1x eDP, 1x DP++, 4x USB 4.0, Ind. Temp. |
|
| HC77-3000-1120-C2 | Part Number DescriptionHPC – CARINA w/Intel® Core™ i7-1185G7E, Quad Core @ 2.8GHz (4.4GHz in Turbo Boost), 12MB Cache, 28/15/12W cTDP, TPM 2.0, 8x PCI-e Gen 3, 1x eDP, 1x DP++, 4x USB 4.0, Comm. Temp. |
|
| HC77-3000-2101-C2 | Part Number DescriptionCOM-HPC – CARINA w/Intel® Core™ i7-1185G7E, Quad Core @ 2.8GHz (4.4GHz in Turbo Boost), 12MB Cache, 28/15/12W cTDP, 8x PCI-e Gen 3, 1x eDP, 3x DP++, 2x USB 4.0, Comm. Temp. |
|
| HC77-4000-1120-C2 | Part Number DescriptionHPC – CARINA w/Intel® Celeron® 6305E, Dual Core @1.8GHz, 4MB Cache, 15W TDP, TPM 2.0, 8x PCI-e Gen 3, 1x eDP, 1x DP++, 4x USB 4.0, Comm. Temp. |
|
| HC77-5000-1120-I2 | Part Number DescriptionCOM-HPC – CARINA w/ Intel® Core™ i5-1145GRE, Quad Core @ 2.6GHz (4.1GHz in Turbo Boost), 8MB Cache, with IBECC and FuSa, 28/15/12W cTDP, TPM 2.0, 8x PCI-e Gen 3, 1x eDP, 1x DP++, 4x USB 4.0, Ind. Temp. |
|
| HC77-6000-1120-C2 | Part Number DescriptionHPC – CARINA w/ Intel® Core™ i3-1115G4E, Dual Core @ 3.0GHz (3.9GHz in Turbo Boost), 6MB Cache, 28/15/12W cTDP, TPM 2.0, 8x PCI-e Gen 3, 1x eDP, 1x DP++, 4x USB 4.0, Comm. Temp. |
|
| HC77-7000-1120-I2 | Part Number DescriptionCOM-HPC – CARINA w/Intel® Core i3-1115GRE, Dual Core @ 3.0GHz (3.9GHz in Turbo Boost), 6MB Cache, 28/15/12W cTDP, TPM 2.0, 8x PCI-e Gen 3, 1x eDP, 1x DP++, 4x USB 4.0, Ind. Temp. |
|
