Description
Opis

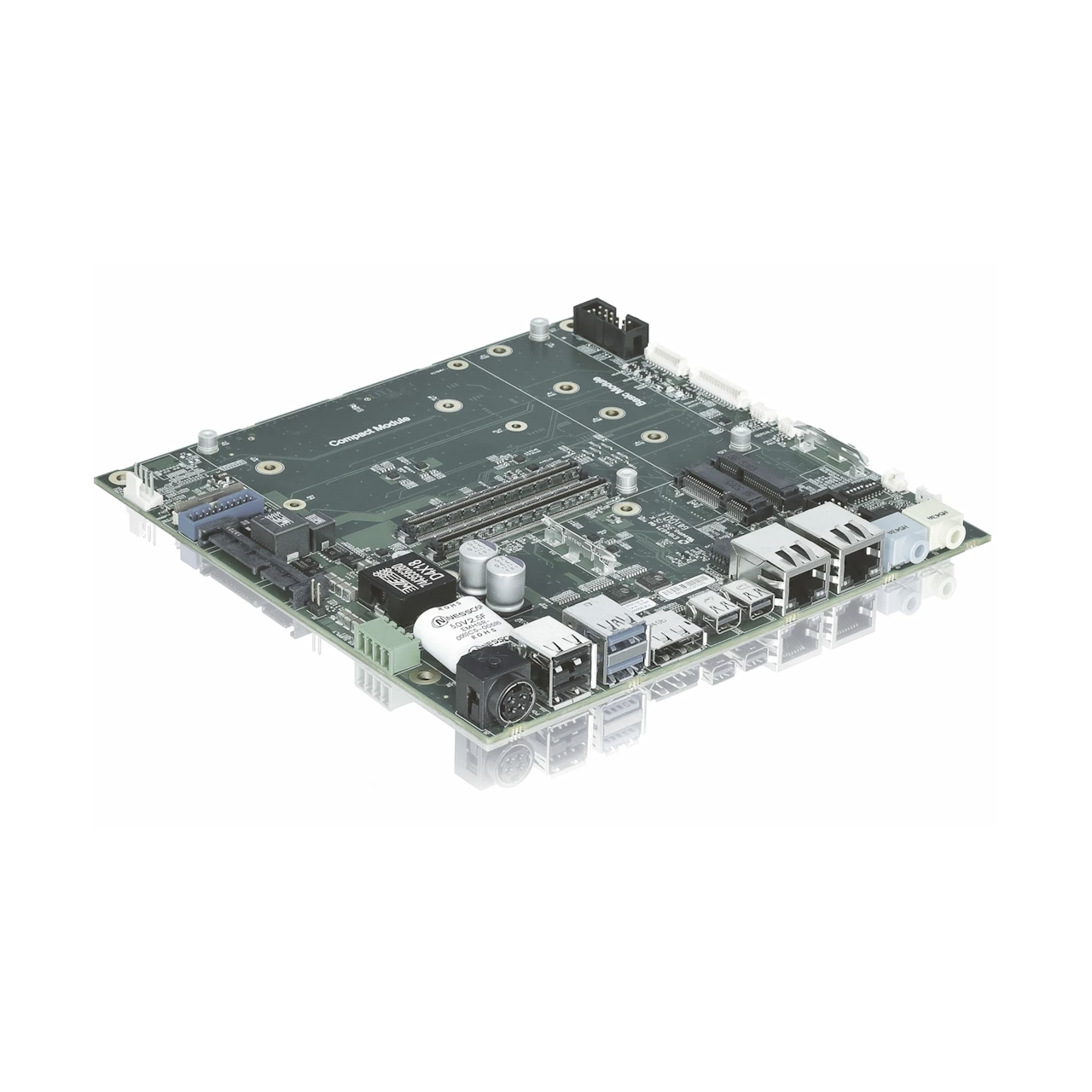

Kontron Reference Carrier Board dla przyszłościowych COM z pin-out Type 6 to mały projekt referencyjny dla małych i przenośnych rozwiązań z wszechstronną łącznością, w tym USB 3.0/2.0, trzy cyfrowe interfejsy wyświetlania (1x DisplayPort, 2x MiniDisplayPortI), Mini PCIe gniazda kart, gniazdo M.2 i gniazdo karty SIM.
Płytka nośna odniesienia w formacie mini-ITX została specjalnie zaprojektowana do testów środowiskowych, w których rozwiązanie jest poddawane działaniu rozszerzonego zakresu temperatur (E2) -40°C do +85°C.
FEATURES
| Processor | Via COMe basic/compact Type 6 module |
| Main Memory | Via COMe basic/compact Type 6 module |
| PCI Express / PCI support | Three PCIe interfaces: » PCIe#0 for Mini PCIe 2.0 half-size card slot connected to the SIM card slot, J24 » PCIe#1 for Mini PCIe 2.0 full-size card slot muxed with SATA#1 (mSATA) and connected to the SIM card slot, J21 » PCIe#2 for the onboard Gigabit Ethernet controller |
| SATA | Four SATA 6 Gb/s interfaces: » SATA#0 via the 22-pin SATA plug connector (with redriver ICs), J5 » SATA#1 for the mSATA socket / Mini PCIe full-size card slot (with redriver ICs), J21 » SATA#2 muxed with PEG#0 for the M.2 interface (with redriver ICs) » SATA#3 via the 22-pin SATA receptacle connector (with redriver ICs), J33 |
| Ethernet | Two Gigabit Ethernet interfaces: » GbE#0 on RJ45 connector, J18, via COMe basic/compact Type 6 module » GbE#1 on RJ45 connector, J20, via the onboard GbE controller (Intel® Ethernet Controller I210-IT) |
| Audio | Four HD Audio interfaces: » Rear panel line-in connector, J25 » Rear panel SPK/line-out connector, J26 » Front panel HD audio header, J22 » S/PDIF header, J23 |
| Power Supply | Power input 1: 12V only Power input 2: 8.5V – 30V wide input range |
| BIOS | Via COMe basic/compact Type 6 module |
| Temperature | Operational: -40°C to +85°C Storage: -40°C to +85°C Note: When additional components are installed, refer to their operational specifications as this will influence the operational and storage temperature of the COMe Ref. Carrier-i T6 TMI |
| Humidity | 93% RH at 40 °C, non-condensing (acc. to IEC 60068-2-78) |
| Form Factor | COM Express® carrier, pinout Type 6, Thin-mITX form factor |
| Dimensions (H x W x D) | 170 mm x 170 mm (mITX) Max. component height: Top side: 16.2 mm Bottom side: 5.4 mm |
