Description
Opis

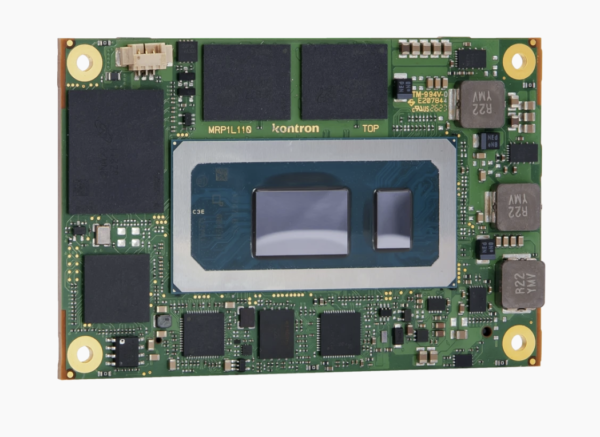

Nowe moduły COM-Express®, oparte na Intel® Core™ 13. generacji (poprzednia nazwa kodowa Raptor Lake-P), oferują znaczny wzrost wydajności w porównaniu z poprzednią generacją i są wyposażone w maksymalnie 14 rdzeni opartych na hybrydowej architekturze wydajności Intel®.
Moduły COM-Express® zapewniają podstawowe funkcje klasy przemysłowej, takie jak obsługa pamięci z kodem korekcji błędów w paśmie (IBECC), Intel® Time Coordinated Computing (Intel® TCC), Time-Sensitive Networking (TSN) i rozszerzone temp. zakres od -40C do +85C (praca).
Wszystkie funkcje są idealne do zastosowań w wymagających obszarach, takich jak automatyka przemysłowa, opieka zdrowotna i motoryzacja.
FEATURES
| Compliance | COM Express® Mini Pin-out Type 10 |
| Dimension (H x W) | 84 x 55 mm |
| CPU | Intel® 13th Generation Core™ family For details see table (CPU variants) given below |
| Chipset | Integrated SoC |
| Main Memory | Dual-Channel LPDDR5(x) memory down up to 32 GByte |
| Graphics Controller | Intel® Iris® Xe Graphics on i7/i5 processors Intel® UHD Graphics on i3/Celeron® processors |
| Ethernet Controller | Intel® I226LM/I226IT |
| Ethernet | Up to 2.5Gb Ethernet with TSN support |
| Storage | 2x SATA 6Gb/s |
| Flash Onboard | Up to 1 TByte NVMe SSD (on request) |
| PCI Express | 4x PCIe 3.0 |
| Display | DDI1: DP++, LVDS: Single Channel 18/24bit |
| USB | 2x USB 3.2 Gen2 (incl. USB 2.0) + 6x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) |
| Audio | High Definition Audio interface |
| Common Features | (G) SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC |
| Special Features | POSCAP capacitors, Trusted Platform Module TPM 2.0 |
| Power Management | ACPI 6.0 |
| Power Supply | 4.75 V – 20 V Wide Range, Single Supply Power |
| BIOS | AMI Aptio V |
| Operating System | Windows®10, Linux, VxWorks (project based) |
| Temperature | Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
VARIANTS
| COMe-mRP10 E2 i7-1365URE 32GB 34015-3200-17-7 |
 |
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i7-1365URE, 2×1.7GHz, 32GB memory down, industrial temperature grade | |
| COMe-mRP10 E2 i7-1365URE 16GB 34015-1600-17-7 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i7-1365URE, 2×1.7GHz, 16GB memory down, industrial temperature grade | |
| COMe-mRP10 E2 i5-1345URE 32GB 34015-3200-14-5 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i5-1345URE, 2×1.4GHz, 32GB memory down, industrial temperature grade | |
| COMe-mRP10 E2 i5-1345URE 16GB 34015-1600-14-5 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i5-1345URE, 2×1.4GHz, 16GB memory down, industrial temperature grade | |
| COMe-mRP10 E2 i3-1315URE 16GB 34015-1600-12-3 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i3-1315URE, 2×1.2GHz, 16GB memory down, industrial temperature grade | |
| COMe-mRP10 E2 i3-1315URE 8GB 34015-8000-12-3 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i3-1315URE, 2×1.2GHz, 8GB memory down, industrial temperature grade | |
| COMe-mRP10 i7-1365UE 32GB 34014-3200-17-7 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i7-1365UE, 2×1.7GHz, 32GB memory down | |
| COMe-mRP10 i7-1365UE 16GB 34014-1600-17-7 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i7-1365UE, 2×1.7GHz, 16GB memory down | |
| COMe-mRP10 i5-1345UE 32GB 34014-3200-14-5 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i5-1345UE, 2×1.4GHz, 32GB memory down | |
| COMe-mRP10 i5-1345UE 16GB 34014-1600-14-5 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i5-1345UE, 2×1.4GHz, 16GB memory down | |
| COMe-mRP10 i3-1315UE 16GB 34014-1600-12-3 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Core™ i3-1315UE, 2×1.2GHz, 16GB memory down | |
| COMe-mRP10 U300E 8GB 34014-8000-11-1 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Pentium® U300E, 1×1.1GHz, 8GB memory down |
ACCESSORIES
| COME EVAL CARRIER T10 GEN2 34101-0000-00-2 |
|
COM Express® Evaluation Carrier Type 10 Gen2 | |
| HSP COMe-mRP10 CU-CORE THREADED 34014-0000-99-0 |
|
Heatspreader for COM-mRP10, Cu-core, threaded mounting holes | |
| HSP COMe-mRP10 CU-CORE THROUGH 34014-0000-99-1 |
|
Heatspreader for COM-mRP10, Cu-core, through mounting holes | |
| COMe MINI ACTIVE UNI COOLER2 (W/O HSP) 34099-0000-99-0 |
|
COM Express® Mini Universal Active Cooler for Heatspreader Mounting | |
| COMe MINI PASSIVE UNI COOLER2 (W/O HSP) 34099-0000-99-1 |
|
COM Express® Mini Universal Passive Cooler for Heatspreader Mounting |
