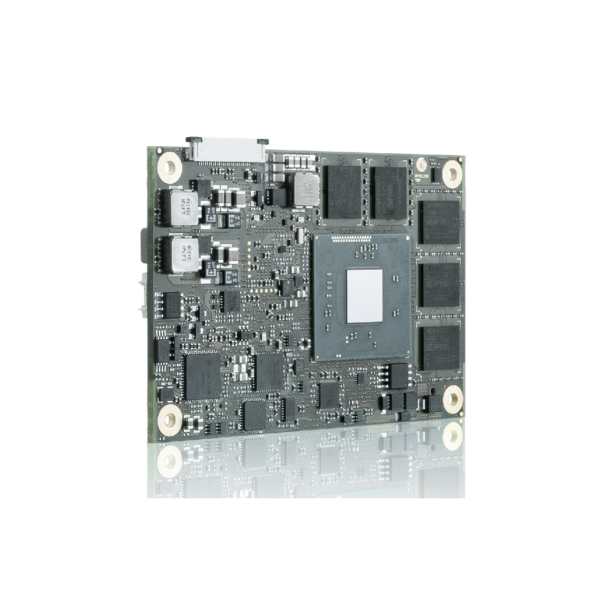

Rodzina Kontron COMe-mBT10 COM Express® mini Computer-on-Module (55 mm x 84 mm) z wyprowadzeniami typu 10 jest wyposażona w procesor Intel® Atom® E3800 lub procesory Intel® Celeron®. Asortyment obejmuje siedem wariantów modułów, oferujących szeroką skalowalność, od energooszczędnego jednordzeniowego procesora Intel® Atom ™ (1,46 GHz / 5 W TDP) do zastosowań energooszczędnych po oryginalny czterordzeniowy procesor Intel® Atom ™ (4x 1,91 GHz / 10 W TDP) i procesor Intel® Celeron® (4x 2,42 GHz / 10 W TDP) w zastosowaniach zaawansowanych). Nowa grafika Intel® Gen 7 HD zintegrowana z SoC oferuje do trzech razy większą moc graficzną, w tym obsługę DirectX 11, Open GL 3.1 i OpenCL 1.1 dla dwóch niezależnych wyświetlaczy z 1x DP ++ (DP / HDMI / DVI) do 2560×1600 @ 60 Hz i 1x jednokanałowy LVDS 18 / 24bit z DPtoLVDS do 1920×1200 (i opcjonalnie eDP). Nowa technologia wideo HD dodatkowo umożliwia doskonałą reprodukcję wideo i stereoskopowe oglądanie 3D, zapewniając wciągające wrażenia użytkownika. Moduły są wyposażone w opcje pamięci danych: dwa interfejsy SATA II 300 Mbps lub wersje z dodatkową pamięcią eMMC (do 64 GB). Oprócz dwóch portów szeregowych są wyposażone w interfejsy Super Fast USB 3.0, do ośmiu portów USB 2.0, Gigabit Ethernet oraz trzy linie Gen 2 PCI-Express x1 do rozbudowy dostosowanej do potrzeb klienta.
FEATURES
| Compliance | COM Express® mini, Pin-out Type 10 |
| Dimension (H x W) | 84 x 55 mm |
| CPU | COMe-mBTi10:
Intel® Atom® E3845 (4×1.91GHz, 10W) Intel® Atom® E3827 (2×1.75GHz, 8W) Intel® Atom® E3826 (2×1.46GHz, 7W) Intel® Atom® E3825 (2×1.33GHz, 6W) Intel® Atom® E3815 (1×1.46GHz, 5W) COMe-mBTc10: Intel® Celeron® J1900 (4×2.00GHz, 10W) Intel® Celeron® N2930 (4×1.83GHz, 7.5W) Intel® Celeron® N2807 (2×1.58GHz, 4.5W) Intel® Atom™ E3815 (1×1.46GHz, 5W) |
| Chipset | – |
| Main Memory | up to 4GB DDR3L-1066/1333 memory down (ECC optional) |
| Graphics Controller | Intel® HD Graphics (Gen7) |
| Ethernet Controller | COMe-mBTi10: Intel® I210IT
COMe-mBTc10: Intel® I211AT |
| Ethernet | 10/100/1000 MBit Ethernet |
| Storage | 2x SATA 3Gb/s |
| Flash Onboard | Build option:
– up to 64 GByte eMMC pSLC – up to 128 GByte eMMC MLC |
| PCI Express | 3x PCIe x1 |
| Display | DDI: DP++
LVDS: Single Channel 18/24bit or eDP |
| USB | 1x USB 3.0 (incl. USB 2.0)
3x USB 2.0 from CPU 4x USB 2.0 via Hub (34006 only) |
| Serial | 2x serial interface (RX/TX only) |
| Audio | Intel® High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC, MARS |
| Special Features | POSCAP capacitors
GPIO/SDIO Switch General Purpose SPI optional |
| Options | 1x PCIe x1 additional w/o onboard LAN
Trusted Platform Module TPM 1.2 ECC memory eMMC Flash onboard (2-32GB pSLC, 4-64GB MLC) eDP instead of LVDS General Purpose SPI instead of Boot SPI AES-NI |
| Power Management | ACPI, S5 Eco |
| Power Supply | 4.75V – 20V Wide Range, Single Supply Power |
| BIOS | Phoenix Secure Core UEFI |
| Operating System | Windows® 8, Windows® 7, WE8S, WES7, WEC7, Linux, VxWorks |
| Temperature | Commercial temperature (COMe-mBTc10):
0°C to +60°C operating -30°C to +85°C non-operating Industrial temperature (COMe-mBTi10): -40°C to +85°C operating -40°C to +85°C non-operating |
| Humidity | 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78) |
| Supported Modules | 34006-xxxx-xx-x: COMe-mBTi10, industrial temperature
34007-xxxx-xx-x: COMe-mBTc10, commercial temperature |
VARIANTS
| COMe-mBTi10 E3845 4E/16GB 34006-4016-19-4 |
 |
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3845, 4×1.91GHz, 4GB DDR3L ECC memory down, 16GB MLC eMMC, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | |
| COMe-mBTi10 E3845 2GB 34006-2000-19-4 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3845, 4×1.91GHz, 2GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | |
| COMe-mBTi10 E3827 2GB 34006-2000-17-2 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3827, 2×1.75GHz, 2GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | |
| COMe-mBTi10 E3827 1E/4S 34006-1040-17-2 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3827, 2×1.75GHz, 1GB DDR3L ECC memory down, 4GB pSLC eMMC, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | |
| COMe-mBTi10 E3826 2GB 34006-2000-15-2 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3826, 2×1.46GHz, 2GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | |
| COMe-mBTi10 E3825 2GB 34006-2000-13-2 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3825, 2×1.33GHz, 2GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | |
| COMe-mBTi10 E3815 1E/2S 34006-1020-15-1 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3815, 1×1.46GHz, 1GB DDR3L ECC memory down, 2GB pSLC eMMC, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | |
| COMe-mBTi10 E3815 1GB 34006-1000-15-1 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3815, 1×1.46GHz, 1GB DDR3L memory down, SDIO/GPIO Switch, i210IT LAN, USB Hub, industrial temperature | |
| COMe-mBTc10 J1900 4GB 34007-4000-20-4 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Celeron® J1900, 4×2.00GHz, 4GB DDR3L memory down, commercial grade | |
| COMe-mBTc10 N2930 2GB 34007-2000-18-4 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Celeron® N2930, 4×1.83GHz, 2GB DDR3L memory down, commercial grade | |
| COMe-mBTc10 N2807 2GB 34007-2000-16-2 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Celeron® N2807, 2×1.58GHz, 2GB DDR3L memory down, commercial grade | |
| COMe-mBTc10 N2807 2GB/8S 34007-2080-16-2 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Celeron® N2920, 4×1.86GHz, 2GB DDR3L memory down, 8GB pSLC eMMC, commercial grade | |
| COMe-mBTc10 E3815 1GB 34007-1000-15-1 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3815, 1×1.46GHz, 1GB DDR3L memory down, commercial grade | |
| COMe-mBTc10 E3815 1GB/2S 34007-1020-15-1 |
|
COM Express® mini pin-out type 10 Computer-on-Module with Intel® Atom® E3815, 1×1.46GHz, 1GB DDR3L memory down, 2GB pSLC eMMC, commercial grade |
ACCESSORIES
| COMe Eval Carrier2 T10 34101-0000-00-2 |
 |
COM Express® Evaluation Carrier Type 10 | more |
| COMe Ref.Carrier-i T10 TNI |  |
COM Express® Reference Carrier Type 10 for industrial temperature | more |
| HSP COMe-mBT10 thread 34006-0000-99-0 |
|
Heatspreader for COMe-mBT10, threaded mounting holes | |
| HSP COMe-mBT10 through 34006-0000-99-1 |
|
Heatspreader for COMe-mBT10, through holes | |
| HSP COMe-mBT10 slim thread 34006-0000-99-2 |
|
Slimline heatspreader 6.5mm for COMe-mBT10, threaded mounting holes | |
| HSP COMe-mBT10 slim through 34006-0000-99-3 |
|
Slimline heatspreader 6.5mm for COMe-mBT10, through holes | |
| COMe mini Active Uni Cooler 34099-0000-99-0 |
|
COM Express® mini Universal Active Cooler for Heatspreader Mounting (for CPUs <10W) | |
| COMe mini Passive Uni Cooler 34099-0000-99-1 |
|
COM Express® mini Universal Passive Cooler for Heatspreader Mounting | |
| COMe mini Passive Uni Cooler Slim 34099-0000-99-2 |
|
COM Express® mini Universal Passive Cooler Slim-line for Heatspreader Mounting (for 3-5W CPUs) | |
| COMe mMount Kit 5/8mm 1set 34017-0000-00-0 |
|
COM Express® Mounting Kit for COMe mini and 5mm/8mm Stand-Off |
