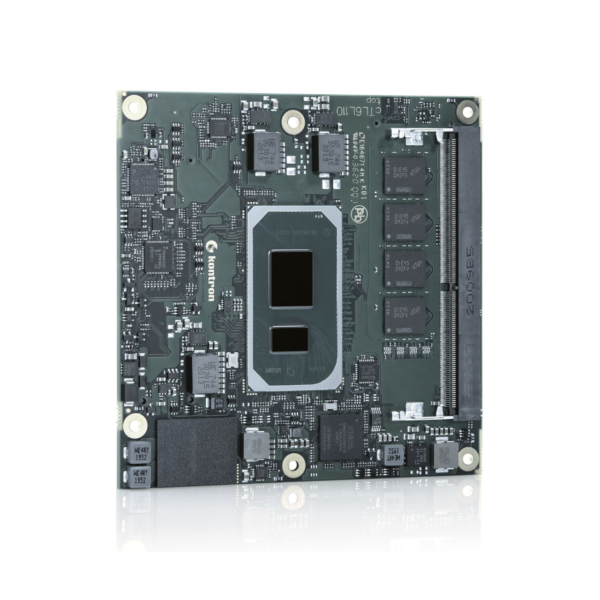

COM EXPRESS® COMPACT TYP 6 Z PROCESORAMI INTEL® CORE ™ / CELERON® 11 GENERACJI
FEATURES
| Compliance | COM Express® Compact Pin-out Type 6 |
| Dimensions (H x W x D) | 95 x 95 mm |
| CPU | Intel® 11th Generation CoreTM / Celeron® family For details see table (CPU variants) given below |
| Chipset | Integrated SoC |
| Main Memory | 1x DDR4 SO-DIMM up to 32 GByte, 2nd channel DDR4 memory down up to 16 GByte |
| Graphics Controller | Intel® Iris®Xe Graphics on i7/i5 processors Intel® UHD Graphics on i3 processors |
| Ethernet Controller | Intel® I225LM/I225IT |
| Ethernet | Up to 2.5Gb Ethernet with TSN support (depending on SKU) |
| Storage | 2x SATA 6Gb/s |
| Flash Onboard | Up to 1 TByte NVMe SSD (on request) |
| PCI Express | 5x PCIe 3.0 (On request: 6x without Ethernet, up to 8x without Ethernet & SATA) 1×4 PCIe 4.0 on PEG Lanes #0-3 |
| Display | DDI1: DP++, DDI2: DP++, DDI3: DP++, VGA: -, LVDS: Dual Channel 18/24bit |
| USB | 4x USB 3.1 (incl. USB 2.0) + 4x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) |
| Audio | High Definition Audio interface |
| Special Features | POSCAP capacitors, Trusted Platform Module TPM 2.0 |
| Power Management | ACPI 6.0 |
| Power Supply | 8.5 V – 20 V Wide Range, Single Supply Power |
| BIOS | AMI Aptio V |
| Operating System | Windows®10, Linux, VxWorks |
| Temperature | Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating Extended temperature: -25 °C to +75 °C operating, -30 °C to +85 °C non-operating Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
VARIANTS
| COMe-cTL6 E2 i7-1185GRE 16GB 36031-1600-18-7 |
 |
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i7-1185GRE, 4×1.8 GHz, 16GB memory down, DDR4 SO DIMM Socket, industrial temperature grade | |
| COMe-cTL6 E2 i5-1145GRE 8GB 36031-8000-15-5 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i5-1145GRE, 4×1.5 GHz, 8GB memory down, DDR4 SO DIMM Socket, industrial temperature grade | |
| COMe-cTL6 E2 i3-1115GRE 36031-0000-22-3 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i3-1115GRE, 2×2.2 GHz, DDR4 SO DIMM Socket, industrial temperature grade | |
| COMe-cTL6 i7-1185G7E 16GB/1TB 36030-1610-18-7 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i7-1185G7E, 4×1.8 GHz, 16GB memory down, DDR4 SO DIMM Socket, 1024GB NVMe | |
| COMe-cTL6 i7-1185G7E 16GB 36030-1600-18-7 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i7-1185G7E, 4×1.8 GHz, 16GB memory down, DDR4 SO DIMM Socket | |
| COMe-cTL6 i7-1185G7E 36030-0000-18-7 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i7-1185G7E, 4×1.8 GHz, DDR4 SO DIMM Socket | |
| COMe-cTL6 i5-1145G7E 8GB 36030-8000-15-5 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i5-1145G7E, 4×1.5 GHz, 8GB memory down, DDR4 SO DIMM Socket | |
| COMe-cTL6 i5-1145G7E 36030-0000-15-5 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i5-1145G7E, 4×1.5 GHz, DDR4 SO DIMM Socket | |
| COMe-cTL6 i3-1115G4E 36030-0000-22-3 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Core™ i3-1115G4E, 2×2.2 GHz, DDR4 SO DIMM Socket | |
| COMe-cTL6 6305E 36030-0000-18-2 |
|
COM Express® compact pin-out type 6 Computer-on-Module with Intel® Celeron® 6305E, 2×1.8 GHz, DDR4 SO DIMM Socket |
ACCESSORIES
| COMe Eval Carrier2 T6 38116-0000-00-5 |
 |
COM Express® Eval Carrier2 Type 6 with 5mm COMe connector | more |
| HSP COMe-cTL6 Cu-core threaded 36030-0000-99-0 |
|
Heatspreader for COMe-cTL6, Cu-core, threaded mounting holes | |
| HSP COMe-cTL6 Cu-core through 36030-0000-99-1 |
|
Heatspreader for COMe-cTL6, Cu-core, through mounting holes | |
| COMe Active Uni Cooler2 (w/o HSP) 36099-0000-99-4 |
|
COM Express® Universal Active Cooler2 for Heatspreader Mounting (95x95x14.3) – 90° turnable | |
| COMe Passive Uni Cooler2 (w/o HSP) 36099-0000-99-5 |
|
COM Express® Universal Passive Cooler for Heatspreader Mounting (95x95x14.3) – 90° turnable | |
| DDR4-3200 SODIMM 32GB_CTL6 97020-3232-CTL6 |
|
Memory for Computer-on-Module COMe-cTL6; min. specification: DDR4-3200, 32GB, 260P, 1600MHz, PC4-3200 SODIMM; validated for: COMe-cTL6 | |
| DDR4-3200 SODIMM 16GB_CTL6 97020-1632-CTL6 |
|
Memory for Computer-on-Module COMe-cTL6; min. specification: DDR4-3200, 16GB, 260P, 1600MHz, PC4-3200 SODIMM; validated for: COMe-cTL6 | |
| DDR4-3200 SODIMM 8GB_CTL6 97020-0832-CTL6 |
|
Memory for Computer-on-Module COMe-cTL6; min. specification: DDR4-3200, 8GB, 260P, 1600MHz, PC4-3200 SODIMM; validated for: COMe-cTL6 | |
| DDR4-3200 SODIMM 4GB_CTL6 97020-0432-CTL6 |
|
Memory for Computer-on-Module COMe-cTL6; min. specification: DDR4-3200, 4GB, 260P, 1600MHz, PC4-3200 SODIMM; validated for: COMe-cTL6 | |
| DDR4-3200 SODIMM 32GB E2_CTL6 97021-3232-CTL6 |
|
Memory for Computer-on-Module COMe-cTL6; min. specification: DDR4-3200, 32GB, 260P, 1600MHz, PC4-3200 SODIMM; validated for: COMe-cTL6 E2 | |
| DDR4-3200 SODIMM 16GB E2_CTL6 97021-1632-CTL6 |
|
Memory for Computer-on-Module COMe-cTL6; min. specification: DDR4-3200, 16GB, 260P, 1600MHz, PC4-3200 SODIMM; validated for: COMe-cTL6 E2 | |
| DDR4-3200 SODIMM 8GB E2_CTL6 97021-0832-CTL6 |
|
Memory for Computer-on-Module COMe-cTL6; min. specification: DDR4-3200, 8GB, 260P, 1600MHz, PC4-3200 SODIMM; validated for: COMe-cTL6 E2 | |
| DDR4-3200 SODIMM 4GB E2_CTL6 97021-0432-CTL6 |
|
Memory for Computer-on-Module COMe-cTL6; min. specification: DDR4-3200, 4GB, 260P, 1600MHz, PC4-3200 SODIMM; validated for: COMe-cTL6 E2 |
