Description
Opis

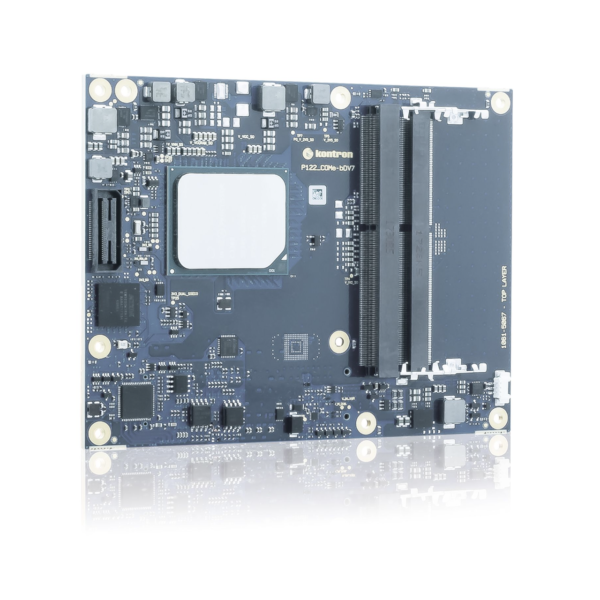

Moduł COM Express® COMe-bDV7 oparty na procesorze Intel® Atom® z serii C3000 rozszerza rodzinę produktów firmy Kontron o platformy COM klasy serwerowej. COMe-bDV7 jako podstawowa platforma jest produktem uzupełniającym do wysokowydajnego COMe-bBD7 wyposażonego w procesor Intel® Xeon® z serii D-1500. Moduł COMe-bDV7 oferuje skalowalną wydajność procesora z maksymalnie 16 rdzeniami. Ta niezawodna wydajność w połączeniu z obsługą do czterech portów 10GbE-KR sprawia, że idealnie nadaje się do wdrożeń intensywnie korzystających z sieci. Konstrukcja KR pozwala na maksymalną elastyczność poprzez zdefiniowanie interfejsu fizycznego – KR do połączenia z płytą montażową, Miedź (RJ45) lub światłowód (SFP +) na płycie bazowej w połączeniu z odpowiednim PHY. Ponadto dostępne sygnały NC-Si umożliwiają podłączenie kontrolera zarządzania płytą główną (BMC) do płyty bazowej w celu umożliwienia zdalnego zarządzania poza pasmem. Zwiększa to niezawodność i pomaga obniżyć koszty operacyjne.
Ponadto COMe-bDV7 oferuje szybką łączność z konfigurowalnych linii PCIe Gen3.0 dla wysokich wymagań wydajnościowych we / wy. Oferując dobrze zbalansowany wielordzeniowy procesor w porównaniu z podejściem do rozmiaru pamięci, obsługuje do 64 GB pamięci ECC lub bez ECC DDR4 za pośrednictwem dwóch gniazd SODIMM, opcjonalnie do 128 GB przez 4 gniazda SODIMM.
Dodatkową zaletą dla programistów jest opcjonalna integracja wbudowanego rozwiązania zabezpieczającego APPROTECT firmy Kontron, opartego na technologii WIBU Systems.
FEATURES
| Compliance | COM Express® basic, Pin-out Type 7 |
| Dimensions (H x W x D) | 125 x 95 mm |
| CPU | Commercial temperature: Intel® Atom® Processor C3958, 16C, 2.0GHz, 31W TDP Intel® Atom® Processor C3858, 12C, 2.0GHz, 25W TDP Intel® Atom® Processor C3758, 8C, 2.2GHz, 25W TDP Intel® Atom® Processor C3558, 4C, 2.2GHz, 16W TDP Industrial temperature: Intel® Atom® Processor C3808, 12C, 2.0 GHz, 25 W TDP Intel® Atom® Processor C3708, 8C, 1.7 GHz, 17 W TDP Intel® Atom® Processor C3508, 4C, 1.5 GHz, 11 W TDP Intel® Atom® Processor C3308, 2C, 1.6 GHz, 9 W TDP |
| Panel signal | – |
| Audio | – |
| Main Memory | 2x DDR4 SODIMM for up to 64 GByte ECC / non ECC on request: 4x DDR4 SODIMM for up to 128 GByte ECC / non ECC |
| Graphics Controller | – |
| Chipset | Integrated in SoC |
| Ethernet | 1x 10/100/1000 MBit Ethernet Up to 4x 10GbE Interfaces (KR) – depending on C3000 SKU NC-SI support |
| Ethernet Controller | Intel® I210IT (uses one lane of PCIe 3.0) – 1 GbE Intel® Quad LAN integrated in SoC – up to 4x 10 GbE |
| Hard Disk | Up to 2x SATA3, 6Gb/s |
| Options | eMMC 5.0 up to 64 GByte SLC or 128GByte MLC (build option) |
| PCI Express / PCI support | Up to 14x PCIe 3.0 lanes – depending on C3000 SKU |
| USB | Up to 3x USB3.0 / 4x USB2.0 (3x USB2.0 with WIBU security chip) |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC |
| BIOS | AMI UEFI |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 5.0 |
| Power Supply | ATX, 8.5 V – 20 V Wide Range, Single Supply Power |
| Special Features | Trusted Platfom Module TPM 2.0 Security Chip for Kontron security stack- APPROTECT |
| Operating System | Linux, Windows® Server 2012 / 2012 R2 / 2016, Windows® 7, VxWorks 7 |
| Temperature | Commercial temperature 0 – 60 °C Industrial temperature -40 °C to +85 °C (specified SKUs only) |
| Supported Modules | COMe-bDV7 : commercial grade 68006-xxxx-xx-x COMe-bDV7 E2 : industrial grade 68007-xxxx-xx-x |
VARIANTS
| COMe-bDV7 C3958 68006-0000-58-9 |
COM Express® basic pin-out type 7 Computer-on-Module with Intel® Atom® processor C3958, 16 core, 2.0GHz, 4x 10GbE, 2x DDR4 SO-DIMM socket | ||
| COMe-bDV7 C3858 68006-0000-58-8 |
COM Express® basic pin-out type 7 Computer-on-Module with Intel® Atom® processor C3858, 12 core, 2.0GHz, 4x 10GbE, 2x DDR4 SO-DIMM socket | ||
| COMe-bDV7 C3758 68006-0000-58-7 |
COM Express® basic pin-out type 7 Computer-on-Module with Intel® Atom® processor C3758, 8 core, 2.2GHz, 4x 10GbE, 2x DDR4 SO-DIMM socket | ||
| COMe-bDV7 C3558 68006-0000-58-5 |
COM Express® basic pin-out type 7 Computer-on-Module with Intel® Atom® processor C3558, 4 core, 2.2GHz, 2x 10GbE + 2x 2.5GbE, 2x DDR4 SO-DIMM socket | ||
| COMe-bDV7R E2 C3808 68007-0000-08-8 |
COM Express® basic pin-out type 7 Computer-on-Module with Intel® Atom® processor C3808, 12 core, 2.0GHz, 4x 10GbE, 2x DDR4 SO-DIMM socket, industrial temperature | ||
| COMe-bDV7R E2 C3708 68007-0000-08-7 |
COM Express® basic pin-out type 7 Computer-on-Module with Intel® Atom® processor C3708, 8 core, 1.7GHz, 4x 10GbE, 2x DDR4 SO-DIMM socket, industrial temperature | ||
| COMe-bDV7R E2 C3508 68007-0000-08-5 |
COM Express® basic pin-out type 7 Computer-on-Module with Intel® Atom® processor C3508, 4 core, 1.5GHz, 4x 2.5GbE, 2x DDR4 SO-DIMM socket, industrial temperature | ||
| COMe-bDV7R E2 C3308 68007-0000-08-3 |
COM Express® basic pin-out type 7 Computer-on-Module with Intel® Atom® processor, C3308, 2 core, 1.6GHz, 4x 2.5GbE, 1x DDR4 SO-DIMM socket, industrial temperature |
ACCESSORIES
| COMe Eval Carrier T7 68300-0000-00-0 |
 |
COM Express® Eval Carrier Type 7 | more |
| ADA-COME-T7 4X10G RJ45 – DEV-TOOL 68300-0000-01-0 |
COMe Type 7 Interposer Card, 4x 10GbE RJ45 adapter to be used in combination with COMe Eval Carrier T7 Please see CUSTOMER SECTION for more information |
||
| HSP COMe-bDV7 thread 68007-0000-99-0 |
Heatspreader for COMe-bDV7 threaded mounting holes | ||
| HSP COMe-bDV7 through 68007-0000-99-1 |
Heatspreader for COMe-bDV7 through mounting holes | ||
| HSK COMe-bDV7 125×95 passive thread 68007-0000-99-0C01 |
Passive heat sink for COMe-bDV7 – threaded, all-in-one cooler | ||
| HSK COMe-bDV7 passive through 68007-0000-99-1C01 |
Passive heat sink for COMe-bDV7 – through, all-in-one cooler | ||
| HSK COMe-basic active (w/o HSP) 38025-0000-99-0C05 |
Active Cooler for COMe-bxL6/bDV7 to be mounted on HSP | ||
| HSK COMe-basic passive (w/o HSP) 38025-0000-99-0C06 |
Passive Cooler for COMe-bxL6/bDV7 to be mounted on HSP | ||
| DDR4-2400 SODIMM 4GB_COM7 97020-0424-COM7 |
DDR4-2400, 4GB, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 4GB E2_COM7 97021-0424-COM7 |
DDR4-2400, 4GB, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 4GB ECC_COM7 97030-0424-COM7 |
DDR4-2400, 4GB, ECC, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 4GB ECC E2_COM7 97031-0424-COM7 |
DDR4-2400, 4GB, ECC, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 8GB_COM7 97020-0824-COM7 |
DDR4-2400, 8GB, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 8GB E2_COM7 97021-0824-COM7 |
DDR4-2400, 8GB, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 8GB ECC_COM7 97030-0824-COM7 |
DDR4-2400, 8GB, ECC, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 8GB ECC E2_COM7 97031-0824-COM7 |
DDR4-2400, 8GB, ECC, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 16GB_COM7 97020-1624-COM7 |
DDR4-2400, 16GB, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 16GB E2_COM7 97021-1624-COM7 |
DDR4-2400, 16GB, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 16GB ECC_COM7 97030-1624-COM7 |
DDR4-2400, 16GB, ECC, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 16GB ECC E2_COM7 97031-1624-COM7 |
DDR4-2400, 16GB, ECC, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 32GB_COM7 97020-3224-COM7 |
DDR4-2400, 32GB, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 32GB E2_COM7 97021-3224-COM7 |
DDR4-2400, 32GB, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 32GB ECC_COM7 97030-3224-COM7 |
DDR4-2400, 32GB, ECC, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 32GB ECC E2_COM7 97031-3224-COM7 |
DDR4-2400, 32GB, ECC, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 |
