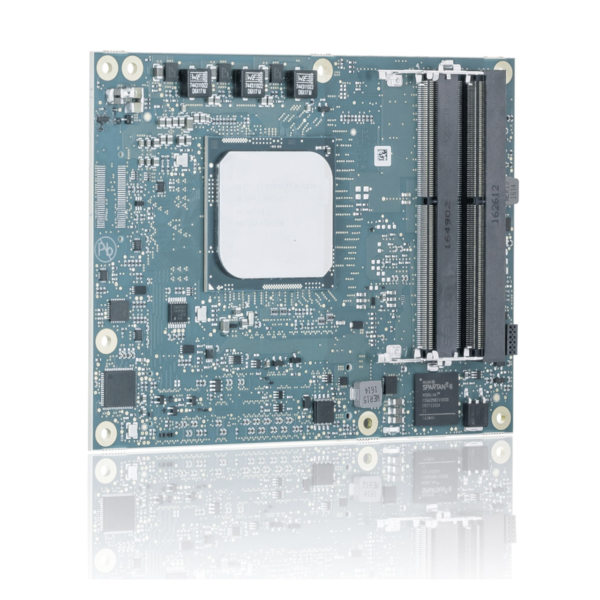

Moduł COM Express® COMe-bBD7 poszerza rodzinę produktów firmy Kontron, obejmującą moduły COM klasy serwerowej. Moduł zapewnia wydajność procesora klasy centrum danych z maksymalnie 16 rdzeniami. Taka wydajność w połączeniu z obsługą dwóch portów 10GbE-KR sprawia, że moduł idealnie nadaje się do wdrożeń intensywnie korzystających z sieci. Konstrukcja KR pozwala na maksymalną elastyczność poprzez zdefiniowanie interfejsu fizycznego – KR do połączenia z płytą montażową, Miedź (RJ45) lub światłowód (SFP +) na płycie głównej. Ponadto dostępne sygnały NC-Si umożliwiają podłączenie kontrolera zarządzania płytą główną (BMC) do płyty bazowej w celu umożliwienia zdalnego zarządzania poza pasmem. Zwiększa to niezawodność i pomaga obniżyć koszty operacyjne.
COMe-bBD7 oferuje szybką łączność z konfigurowalnych linii PCIe z implementacją do PCIe x24 dla wysokich wymagań wydajności we / wy, takich jak te wymagane w zastosowaniach medycznych. Ponadto moduł oferuje dobrze wyważony stosunek wydajności wielordzeniowego procesora do ilości obsługiwanej pamięci, do 64 gigabajtów (GB) pamięci DDR4, również ECC.
Moduł COMe-bBD7 jest wyposażony w standardowe sprzętowe, wbudowane rozwiązanie zabezpieczające Kontron APPROTECT.
FEATURES
| Compliance | COM Express® basic, Pin-out Type 7 |
| Dimensions (H x W x D) | 125 x 95 mm |
| CPU | Intel® Xeon® Processor D-1577, 16 C, 1.3 GHz, 24 MByte, 45 W, Intel® Xeon® Processor D-1548, 8 C, 2.0 GHz, 12 MByte, 45 W, Intel® Xeon® Processor D-1537, 8 C, 1.7 GHz, 12 MByte, 35 W, Intel® Xeon® Processor D-1528, 6 C, 1.9 GHz, 9 MByte, 35 W, Intel® Xeon® Processor D-1527, 4 C, 2.2 GHz, 6 MByte, 35 W, Intel® Pentium® Processor D1517, 4 C, 1.6 GHz, 6 MByte, 25 W, Intel® Pentium® Processor D1508, 2 C, 2.2 GHz, 3 MByte, 25 W, Intel® Xeon® Processor D-1559, 12 C, 1.5 GHz, 18 MByte, 45 W, ind. Temp Intel® Xeon® Processor D-1539, 8 C, 1.6 GHz, 12 MByte, 35 W, ind. Temp Intel® Pentium® Processor D1519, 4 C, 1.5 GHz, 6 MByte, 25 W, ind. Temp |
| Panel signal | – |
| Audio | – |
| Main Memory | 2x DDR4 SODIMM dual channel up to 2x 32 GByte ECC or non ECC |
| Graphics Controller | – |
| Chipset | Integrated in SoC |
| Ethernet | 10 Gbit Ethernet (KR)
10/100/1000 MBit Ethernet |
| Ethernet Controller | 2x 10 GbE: Integrated in SoC<br 1x GbE: Intel® I210IT</br |
| Hard Disk | 2x SATA3, 6Gb/s |
| Options | Up to 32 GByte onboard SATA flash |
| PCI Express / PCI support | 24x PCIe 3.0 (6 controllers, x16, x8, x4, x1 operation)
8x PCIe 2.0 (8 controllers, x8, x4, x1 configuration), |
| USB | 4x USB 3.0/2.0 (1x USB used for onboard security chip) |
| Serial | 2x serial interface (RX/TX only) |
| Common Features | SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC |
| BIOS | AMI UEFI |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Power Management | ACPI 4.0 |
| Power Supply | ATX, 8.5 V – 20 V Wide Range, Single Supply Power |
| Special Features | Trusted Platfom Module TPM 2.0
Security Chip for Kontron security stack- APPROTECT |
| Operating System | Linux, Windows® Server 2012 / 2012 R2 / 2016, Windows® 7, Windows® 10, VxWorks 7.x |
| Temperature | Commercial temperature 0 – 60 °C
Industrial temperature -40 °C to +85 °C (specified SKUs only) |
| Supported Modules | COMe-bBD7 xx-xxxxxx: commercial temperature COMe-bBD7R E2 xx-xxxxxx: industrial temperature |
VARIANTS
| COMe-bBD7 D-1508 10G-BASE-KR 68004-0000-08-2 |
COM Express® basic Type7 with Intel® Pentium® processor D1508, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM | ||
| COMe-bBD7 D-1517 10G-BASE-KR 68004-0000-17-4 |
COM Express® basic Type7 with Intel® Pentium® processor D1517, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM | ||
| COMe-bBD7 D-1527 10G-BASE-KR 68004-0000-27-4 |
COM Express® basic Type7 with Intel® Xeon® processor D-1527, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM, | ||
| COMe-bBD7 D-1528 10G-BASE-KR 68004-0000-28-6 |
COM Express® basic Type7 with Intel® Xeon® processor D-1528, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM | ||
| COMe-bBD7 D-1537 10G-BASE-KR 68004-0000-37-8 |
COM Express® basic Type7 with Intel® Xeon® processor D-1537, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM | ||
| COMe-bBD7 D-1548 10G-BASE-KR 68004-0000-48-8 |
COM Express® basic Type7 with Intel® Xeon® processor D-1548, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM | ||
| COMe-bBD7 D-1577 10G-BASE-KR 68004-0000-77-9 |
COM Express® basic Type7 with Intel® Xeon® processor D-1577, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM | ||
| COMe-bBD7R E2 D-1519 10G-BASE-KR 68005-0000-19-4 |
COM Express® basic Type7 with Intel® Pentium® processor D1519, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM, extended Temp | ||
| COMe-bBD7R E2 D-1539 10G-BASE-KR 68005-0000-39-8 |
COM Express® basic Type7 with Intel® Xeon® processor D-1539, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM, extended Temp | ||
| COMe-bBD7R E2 D-1559 10G-BASE-KR 68005-0000-59-9 |
COM Express® basic Type7 with Intel® Xeon® processor D-1559, dual 10GbE (KR), GbE, 2x DDR4 SO-DIMM, extended Temp |
ACCESSORIES
| COMe Eval Carrier T7 68300-0000-00-0 |
 |
COM Express® Eval Carrier Type 7 | more |
| ADA-COME-T7 4X10G RJ45 – DEV-TOOL 68300-0000-01-0 |
COMe Type 7 Interposer Card, 4x 10GbE RJ45 adapter to be used in combination with COMe Eval Carrier T7 Please see CUSTOMER SECTION for more information |
||
| ADA-COME-T7 2X10G SFP+ – DEV-TOOL 68300-0000-03-0 |
COMe Type 7 Interposer Card, 2x 10GbE SFP+ adapter to be used in combination with COMe Eval Carrier T7 Please see CUSTOMER SECTION for more information |
||
| HSP COMe-bBD6 thread 68002-0000-99-0 |
Heatspreader for COMe-bBD6/bBD7, threaded mounting holes | ||
| HSP COMe-bBD6 through 68002-0000-99-1 |
Heatspreader for COMe-bBD6/bBD7, through holes | ||
| HSK COMe-bBD6 passive (w/o HSP) 68002-0000-99-0C06 |
Passive Cooler for COMe-bBD6/COMe-bBD7 to be mounted on HSP | ||
| HSK COMe-bBD6 active (w/o HSP) 68002-0000-99-0C05 |
Active Cooler for COMe-bBD6/bBD7 to be mounted on HSP | ||
| DDR4-2400 SODIMM 4GB_COM7 97020-0424-COM7 |
DDR4-2400, 4GB, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 4GB E2_COM7 97021-0424-COM7 |
DDR4-2400, 4GB, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 4GB ECC_COM7 97030-0424-COM7 |
DDR4-2400, 4GB, ECC, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 4GB ECC E2_COM7 97031-0424-COM7 |
DDR4-2400, 4GB, ECC, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 8GB_COM7 97020-0824-COM7 |
DDR4-2400, 8GB, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 8GB E2_COM7 97021-0824-COM7 |
DDR4-2400, 8GB, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 8GB ECC_COM7 97030-0824-COM7 |
DDR4-2400, 8GB, ECC, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 8GB ECC E2_COM7 97031-0824-COM7 |
DDR4-2400, 8GB, ECC, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 16GB_COM7 97020-1624-COM7 |
DDR4-2400, 16GB, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 16GB E2_COM7 97021-1624-COM7 |
DDR4-2400, 16GB, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 16GB ECC_COM7 97030-1624-COM7 |
DDR4-2400, 16GB, ECC, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 16GB ECC E2_COM7 97031-1624-COM7 |
DDR4-2400, 16GB, ECC, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 32GB_COM7 97020-3224-COM7 |
DDR4-2400, 32GB, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 32GB E2_COM7 97021-3224-COM7 |
DDR4-2400, 32GB, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 32GB ECC_COM7 97030-3224-COM7 |
DDR4-2400, 32GB, ECC, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 | ||
| DDR4-2400 SODIMM 32GB ECC E2_COM7 97031-3224-COM7 |
DDR4-2400, 32GB, ECC, E2, 260P, 1200MHz, PC4-2400 SODIMM for COMe-cDV7, COMe-bDV7, COMe-bBD7 |
