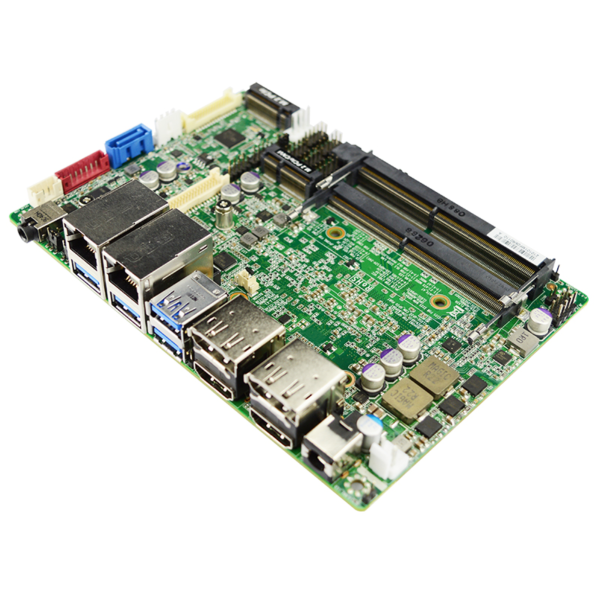

Płyta główna 3,5″ z procesorem Intel® Core i 11. generacji, obsługą poczwórnego wyświetlacza 4K/8K, 4 x COM, 8 x USB i wejściem 12-24 V DC
| SYSTEM | |
| MB FORM FACTOR | 3.5″ |
| CPU | Onboard Intel® 11th Gen Core™ i5-1145G7E (Formerly Tiger Lake-U, TDP 15W) Onboard Intel® 11th Gen Core™ i5-1135G7 (Formerly Tiger Lake-U, TDP 15W) |
| CHIPSET | Intel® SoC |
| MEMORY | 2 x DDR4 3200MHz Dual Channel SO-DIMM, up to 64GB |
| BIOS | AMI Flash ROM |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 |
| DIMENSION (W X D) | 148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″) |
| OS SUPPORT | Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~24V |
| POWER ON MODE | AT / ATX |
| CONNECTOR | DC Jack |
| DISPLAY | |
| GPU | Intel® HD Graphics |
| LVDS | 1 x LVDS (Max. Resolution: 1920 x 1200 @60Hz) |
| eDP | 1 x eDP (Max Resolution: 4096 x 2304@60Hz) |
| DP | 2 x DP1.4 (Max Resolution: 4096 x 2304@60Hz) |
| HDMI | 2 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| COMBO | 1 x Combo Audio Jack for Line-Out / Mic-In |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 1 x RJ45 for Intel® I219-LM GbE 1 x RJ45 for Intel® I226-V 2.5GbE |
| USB PORT | |
| USB | 4 x USB 3.2 Gen 2×1 (10Gbps, Formerly USB 3.1 Gen 2) Internal Header for 4 x USB 2.0 |
| SERIAL PORT | |
| COM | Internal Header for 2 x RS-232/422/485 Internal Header for 2 x RS-232 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| STORAGE | |
| ADDITIONAL | 1 x Chassis intrusion 1 x PS/2 1 x eDP 1 x LVDS w/ Inverter |
| SATA | 1 x SATA III 1 x SATA Power Connector |
| EXPANSION | |
| M.2 | 1 x M-Key 2242/2280 (PCIe 4.0 x4) Support NVMe 1 x E-Key 2230 (USB 2.0/PCIe x1) Support CNVi |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 85°C (-4°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% relative humidity, non-condensing |
| CERTIFICATION | CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS China RoHS REACH |
| PART NUMBER | DESCRIPTION | QTY |
| MF05V Series | MF05V M/B | 1 |
| G01-COM-H2M22-1F | COM Cable | 2 |
| G01-SATA3-BL-1F | SATA Cable | 1 |
| G01-PW4PS2S-322-1F | SATA Power Cable | 1 |

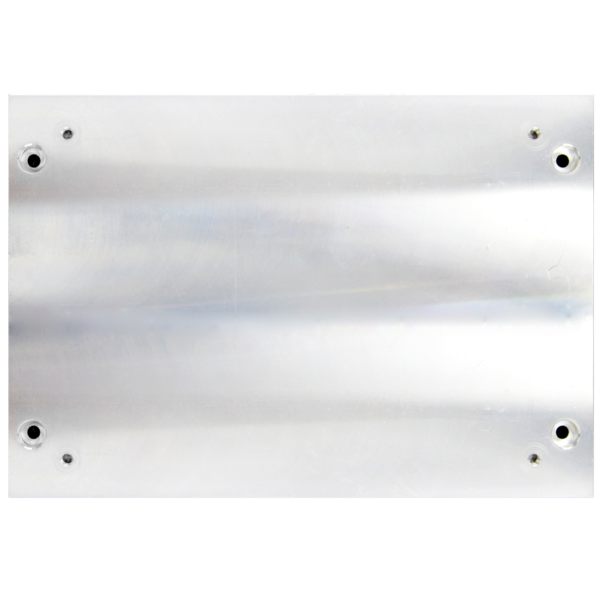

| HCS3XXMHT03S-1F | Flat Type Heatsink | 1 |
