Description

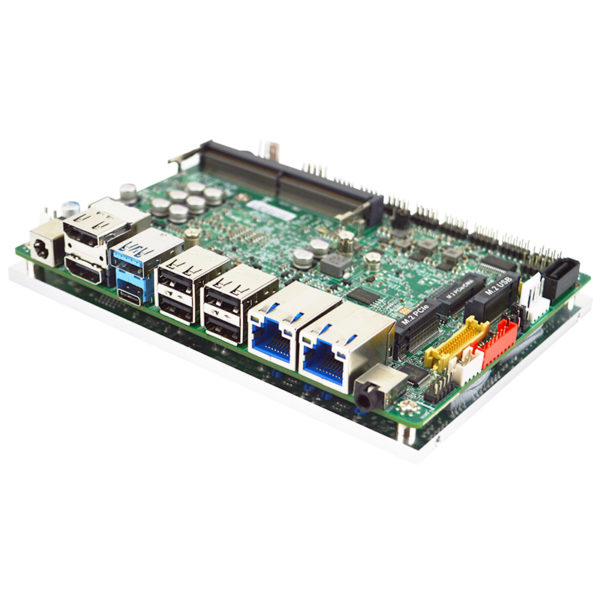

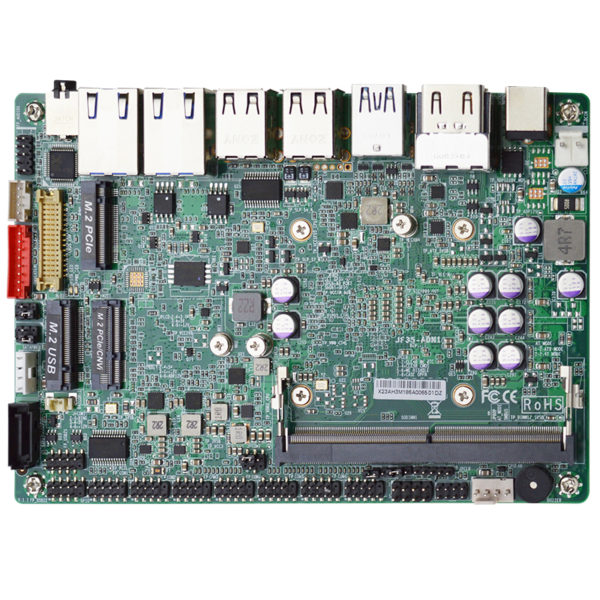

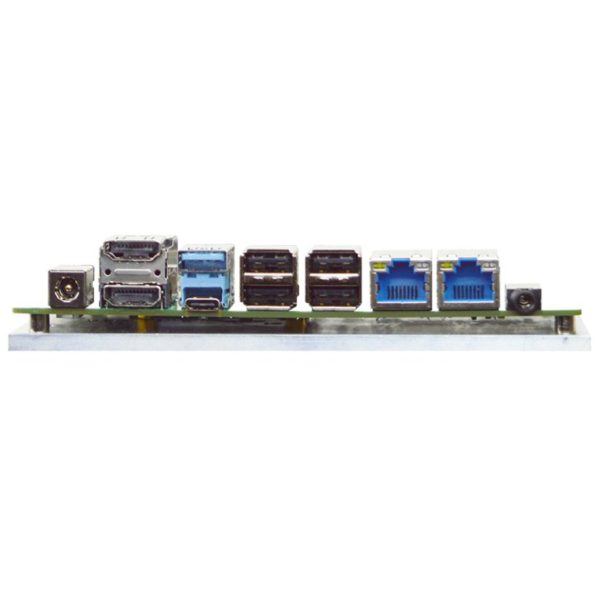

Płyta główna 3,5″ z procesorem Intel® N97, wejście zasilania DC o szerokim zakresie (12-28 V)
| SYSTEM | |
| MB FORM FACTOR | 3.5″ |
| CPU | Onboard Intel® Processor N97 (Formerly Alder Lake-N, TDP 12W) |
| CHIPSET | Intel® SoC |
| MEMORY | 1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 |
| RTC BATTERY | Lithium Battery |
| DIMENSION (W X D) | 148.0 (W) x 102.0 (D) mm (5.8″ x 4.0″) |
| OS SUPPORT | Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~28V |
| POWER ON MODE | AT / ATX |
| CONNECTOR | Internal 2-pin Header |
| DISPLAY | |
| GPU | Intel® UHD Graphics |
| LVDS | 1 x LVDS (Max. Resolution: 1920 x 1200 @60Hz, Co-lay eDP) |
| Type C DP | 1 x Type C DP1.4a (Max Resolution: 3840 x 2160@60Hz) |
| HDMI | 2 x HDMI 2.0b (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 3 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| COMBO | 1 x Combo Audio Jack for Line-Out / Mic-In |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET | 2 x RJ45 for Intel® I226-V 2.5GbE |
| USB PORT | |
| USB | 1 x USB 3.2 Gen 2×1 Type-C (10Gbps) Support DP ALT Mode 1 x USB 3.2 Gen 2×1 (10Gbps, Formerly USB 3.1 Gen 2) 4 x USB 2.0 Internal Header for 4 x USB 2.0 |
| SERIAL PORT | |
| COM | Internal Header for 1 x RS-232/422/485 Internal Header for 5 x RS-232 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| FAN | 1 x CPU Smart Fan |
| FRONT PANEL | HDD Active LED Power LED Power On/Off Reset |
| ADDITIONAL | 1 x Chassis intrusion 1 x Audio Header |
| STORAGE | |
| SATA | 1 x SATA III 1 x SATA Power Connector |
| eMMC | Onboard 64GB eMMC 5.1 (optional) |
| EXPANSION | |
| M.2 | 1 x M-Key 2280 (PCIe 3.0 x2) Support NVMe 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) Support CNVi 1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module |
| SIM | 1 x Nano SIM Card Slot |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | -20°C ~ 60°C (-4°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 85°C (-4°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% relative humidity, non-condensing |
| CERTIFICATION | CE/FCC Class A |
| ESG DECLARATION | ErP |
| PART NUMBER | DESCRIPTION | QTY |
| JF35-ADN1 Series | JF35-ADN1 MB | 1 |
| HCS3XXMHT03S-5F | Flat Type Heatsink (assembled) | 1 |
| HCS376MHT01S-F | CPU Plate (assembled) | 1 |
| G01-SATA3-BL-1F | SATA Cable, 50cm | 1 |
| G01-PW4PS2S-322-1F | SATA Power Y Cable, 5.0pitch for 32cm, 2.54pitch for 20cm | 1 |
| G01-COM-H2M22-1 | COM Port Cable, 22cm, Pitch 2.0 | 2 |
